gdzie znajdę specyfikacje tego procesora ?

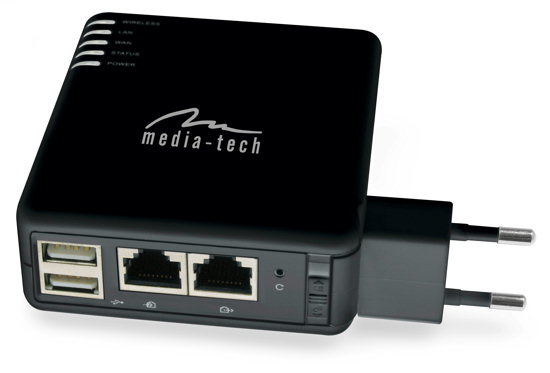

a tak pozatym to oprócz wymiarów niczym nie zadziwia to urządzenie

Star 9105gu to STR9105, oparty o ARM922 (czyli arm).
Jak ktoś zainteresowany:

● 32-bit RISC Core

* Higher performance ARM922-compatible RISC (with 16kB I-cache, 16kB D-cache, 8kB I-scratchpad, 8kB D-scratchpad) memory and memory management unit(MMU) for high-level RTOS, with programmable CPU core clocks up to 200MHz
* Proprietary advanced system bus architecture achieving superior performance
* Supports TRACE32 and Multi-ICE JTAG debugging interfaces
* Built-in intelligent power management for normal and power-saving mode of operations
* Support IRQ/FIQ interrupt modes
* Support little-endian ordering

● Network Processing Engines

* Embedded 2-port 10Base-T/100Base-TX/ 1000Base-T MACR17;s with 4-port L2 gigabit switch engine for wire-speed broadband switch application, compliant with 802.3-2002
* Hardware-based network address translation (HNAT) accelerator supporting L3/L4 fast-path routing to off-load CPU
* DMA engines with burst mode support for efficient data transfer among CPU and WAN/LAN ports
* 1K entries address lookup table
* Support IPv4 packet filtering and TCP/UDP/IP checksum off-load for incoming and outgoing packets

● External Memory Interface

* Static Memory: support 8/16-bit programmable external bus width with address range up to 16 Mbytes, for ROM/Flash/SRAM
* DDR SDRAM: 16/32-bit data path widths with address range up to 256Mbytes, supporting programmable burst lengths of 4/8, and CAS latency of 2.0/2.5

● External Peripheral Interface

* Two RGMII/MII interfaces (MAC or PHY mode) for external transceivers or single-chip switch
* Embedded USB2.0-compliant host PHY and EHCI/OHCI controller supporting two external USB devices simultaneously for low-/full-/ high-speed operations(for printer, digital camera and storage, etc.)
* High-speed 16C550-compliant UART serial channel supporting configurable baud-rates up to 1.5Mbps for monitor console or data transport interface with hardware CTS/RTS flow control (for Bluetooth radio module, etc.)
* 8/16-bit external I/O interface supporting PCMCIA interface or generic DSP/CPU host interfaces (for commercial-off-the-shelf VoIP DSP co-processor, etc.)
* 21 individually programmable GPIOR17;s(shared with other function pins)
* PCI v.2.2-compliant host bridge between 32-bit PCI bus(running up to 66MHz) and on-chip system bus, supports up to three(3) external PCI-based devices(for 802.11 WLAN modules, media co-processors, etc.)

● Other Function Blocks

* Two 32-bit programmable timers, one watch-dog timer and one real-time counter (RTC)
* Programmable interrupt controller with FIQ/IRQ priority configurable
* Integrated PLL clock synthesizer generates all the required clocks from 25MHz reference
* Optimized on-chip voltage regulator provides 2.5/1.8V supplies with low-cost external PNP pass transistors

To oczywiście klon. Produkuje to Amigo, model 3R121g

wrzucam LOGa z konsoli:

ARMboot 1.1.0 (Dec 20 2005 - 16:07:00)

PEK maintain version 1.3.100000000
ARMboot code:00000000 -> 00016900

DDR SDRAM Configuration with DDRC Data Bus Width x16:
DDR Bank #0: 00000000 32 MB

*** Using default environment
init pgtable
ttb is at: 4000
pgtconf...
ttbSet
ttbSet OK...

Hit any key to stop autoboot: 0
done.
## Starting application at 0x0cf00000 ...
Uncompressing Linux............................................................................. done, booting the kernel.
paging_init()....OK
request_standard_resources()....OK
Linux version 2.4.27-uc0-pek3 (root@debian) (gcc version 3.3.6) #2 ĺ 14 15:07:57 CST 2008
CPU: Faraday FA526id(wb) revision 1
ICache:16KB enabled, DCache:16KB enabled, BTB support
Machine: STAR_STR9100
alloc_bootmem_low
memtable_init
On node 0 totalpages: 8192
zone(0): 8192 pages.
zone(1): 0 pages.
zone(2): 0 pages.
Kernel command line: root=/dev/ram0 mem=32M panic=1
IRQ Timer1 at interrupt number 0x0 and clock 100000000(Hz)
Calibrating delay loop... 153.60 BogoMIPS
Memory: 32MB = 32MB total
Memory: 25456KB available (1905Kcode, 536K data, 64K init)
Dentry cache hash table entries: 4096 (order: 3, 32768 bytes)
Inode cache hash table entries: 2048 (order: 2, 16384 bytes)
Mount cache hash table entries: 512 (order: 0, 4096 bytes)
Buffer cache hash table entries: 1024 (order: 0, 4096 bytes)
Page-cache hash table entries: 8192 (order: 3, 32768 bytes)
POSIX conformance testing by UNIFIX
PCI: bus0: Fast back to back transfers disabled
pci bridge found
AHB to bridge interrupt status : 24200000
pci_enable: bus: 0devfn: 0
pci_enable: bus: 0 devfn: 10
Linux NET4.0 for Linux 2.4
Based upon Swansea University Computer Society NET3.039
Initializing RT netlink socket
Starting kswapd
Journalled Block Device driver loaded
i2c-core.o: i2c core module version 2.6.1 (20010830)
i2c-dev.o: i2c /dev entries driver module version 2.6.1 (20010830)
i2c-proc.o version 2.6.1 (20010830)
Str9100 Serial Driver version 5.05c (2001-07-08) with no serial options enabled
ttyS00 at 0xf7800000 (irq = 10) is a Star_UART
STAR star9100 Driver, v1.9pek-d20cm (11/03/2005) - by PEK & Star Semi.
RAMDISK driver initialized: 16 RAM disks of 14336K size 1024 blocksize
PPP generic driver version 2.4.2
PPP MPPE compression module registered
PPP Deflate Compression module registered
SCSI subsystem driver Revision: 1.00
kmod: failed to exec /sbin/modprobe -s -k scsi_hostadapter, errno = 2
kmod: failed to exec /sbin/modprobe -s -k scsi_hostadapter, errno = 2
physmap flash device: 800000 at 10000000
phys_mapped_flash: Found 1 x16 devices at 0x0 in 16-bit bank
Amd/Fujitsu Extended Query Table at 0x0040
phys_mapped_flash: Swapping erase regions for broken CFI table.
number of CFI chips: 1
cfi_cmdset_0002: Disabling erase-suópend-program due to code brokenness.
kmod: failed to exec /sbin/modprobe -s -k cmdlinepart, errno = 2
cmdlinepart partition parsing not available
kmod: failed to exec /sbin/modprobe -s -k RedBoot, errno = 2
RedBoot partition parsing not available
Using physmap partition definition
Creating 3 MTD partitions on "phys_mapped_flash":
0x00000000-0x00040000 : "bootROM"
0x00040000-0x007c0000 : "bootpImage"
0x007c0000-0x00800000 : "User FS"
Linux Kernel Card Services 3.1.22
options: [pci] [cardbus]
usb.c: registered new driver usbdevfs
usb.c: registered new driver hub
hcd.c: ehci_hcd @ EHCI, EHCI_HCdriver
hcd.c: irq 24, pci mem c3005000
usb.c: new USB bus registered, aŽŽ­Ť
IŤÍšŐľÉĹ)5˙USB f.4 enabled, EHCI 1.00, driver 2003-Dec-29/2.4
hub.c: USB hub found
hub.c: 2 ports detected
host/usb-ohci_STR.c: USB OHCI at membase 0xc700c000, IRQ 23
host/usb-ohci_STR.c: usb-OHCI, OHCI_HCdriver
usb.c: new USB b].$ŽÖVkŃÉą
hub.c: 2 ports detected
usb.c: registered new driver acm
acm.c: v0.21:USB Abstract Control Model driver for USB modems and ISDN adapters
usb.c: registered new driver usblp
printer.c: v0.13: USB Printer Device Class driver
Initializing USB Mass Storage driver...
usb.c: registered new driver usb-storage
USB Mass Storage support registered.
Linux video capture interface: v1.00
NET4: Linux TCP/IP 1.0 for NET4.0
IP Protocols: ICMP, UDP, TC¸, IGMP
IP: routing cache hash table of 512 buckets, 4Kbytes
TCP: Hash tables configured (established 2048 bind 4096)
ip_conntrack version 2.1 (256 buckets, 2048 max) - 328 bytes per conntrack
ip_conntrack_pptp version $Revision: 1.8 $ loaded
ip_nat_pptp version $Revision: 1.4 $ loaded
ip_tables: (C) 2000-2002 Netfilter core team
ipt_recent v0.3.1: Stephen Frost . http://snowman.net/projects/ipt_recent/
ŻET4: Unix domain sockets 1.0/SMP for Linux NET4.0.
Ebtables v2.0 registered
NET4: Ethernet Bridge 008 for NET4.0
Bridge firewalling registered
802.1Q VLAN Support v1.8 Ben Greear
Other stuff added by David S. Miller
NetWinder Floating Point Emulator V0.97 (double precision)
ds: no socket drivers loaded!
RAMDISK: CŤ
ÉÍÍĽľ
˝Őš­Á)5˙Freeing initrd memory: 4355K
VFS: Mounted root (ext2 filesystem) readonly.
Freeing init memory: 64K
UART IRQ_ports = c0264e18
UART IRQ at interrupt number 0xa
e2fsck 1.25 (20-Sep-2001)
/dev/mtdblock3: clean, 12/32 files, 26/256 blocks
e2fsck 1.25 20-Sep-2001)
Pass 1: Checking inodes, blocks, and sizes
Pass 2: Checking directory structure
Pass 3: Checking directory connectivity
Pass 4: Checking reference counts
Pass 5: Checking group summary information
/dev/mtdblock3: 12/32 files (0.0% non-contiguous), 26/256 blocks
mount: Mounting /dev/mtdblock3 on /mount failed: Device or resource busy
cpmoużt/nasmac: No such file or directory
cp: `/mount/..' and `/cfg/..' are the same file
crc_sum[d6224ffe]
crc_x[d6224ffe]
cmd[ifconfig eth0 hw ether 00d041b4456400d041b44565]
SIOCSIFHWADDR: Success
cmd[ifconfig eth1 hw ether 00d041b44565]
SIOCSIFHWADDR: Success
check switch mode start
SW_RAM
cphome/httpd/cgi-bin/welcome_client.html: No such file or directory
check switch mode end
enter SW_RAM
rmmod: rt61: No such file or directory
Using /bin/ovcamchip.o
ovcamchip_core.c: v2.28 : OV camera chip I2C driver
Using /bin/ov511.o
usb.c: registered new driver ov511
ov511_core.c: v2.28 : ov511 USB Camera Driver
Using /bin/pwc.o
pwc Philips webcam module version 9.0.2 loaded.
pwc Supports Philips PCA645/646, PCVC675/680/690, PCVC720[40]/730/740/750 & PCVC830/840.
pwc Also supports the Askey VC010, varmous Logitech Quickcams, Samsung MPC-C10 and MPC-C30,
pwc the Creative WebCam 5 & Pro Ex, SOTEC Afina Eye and Visionite VCS-UC300 and VCS-UM100.
usb.c: registered new driver Philips webcam
Using /bin/pwcx.o
Warning: loading pwcx will taint the kernel: non-GPL license - Proprietary. See httpwc Philips wmbcam decompressor routines version 9.0-BETA-2
//pwc Supports all cameras supported by the main module (pwc).
www.smcc.demon.nl/webcam/tainting.html
See http://www.tux.org/lkml/#export-tainted for information about tainted mo˛ules
Using /bin/spca5xx.o
usb.c: registered new driver spca5xx
spca5xxx.c: spca5xx driver 00.60.01 registered
device eth0 entered promiscuous mode
device eth1 entered promiscuous mode
client mode 1
killall: inetd: no process killed
killall: pekcmd: no process kill÷d
rm: cannot remove `/etc/dhcpc/*': No such file or directory
rm: cannot remove `/etc/udhcpd.leases.bre0': No such file or directory
bre0: port 2(eth1) entering learning state
bre0: port 1(eth0) entering learning state
Station_LAN_Mode=[Default]
ra0: unknown interface: No such device
rmmod: rt61: No such file or directory
[rmmod rt61]
Using /bin/rt61.o
Warning: loading rt61 will taint the kernel: no license
See http://www.tux.org/lkml/#export-tainted for information about tainted modules
RT61: Vendor = 0x1814, Product = 0x0302
[insmod /bin/rt61.o]
[ifconfig ra0 down]
RT61: RfIcType= 3
debug FTP: looks like FTP server already DISABLED.
iptables v1.2.11: Unknown arg `--to'
Try `iptables -h' or 'iptables --help' for more information.
iptables v1.2.11: Unknown arg `--to'
Try `iptables -h' or 'iptables --help' for more information.
cp: `/cfg/..' and `/mount/..' are the same file

Welcome to
_____ ____ ___ __
| __ \ / ___| | | / /
| | | | | | | | / /
| | | | | |__ | |/ /
| |_| | | __| | \ Linux (Router with NAS)
| ___/ | | | /\ \
| | | |___ | | \ \_
|_| \_____| |_| \ _\

STAR(R) STR910x

USB device changed!
C!ŽÖËţdnsmasq: started, version 2.22 cachesize 150
dnsmasq: cleared cache
dnsmasq: failed to access /etc/resolv.conf: No such file or directory
info, udhcpd (v0.˝.9-pre) started
error, max_leases value (254) not sane, setting to 9 instead
error, Unable to open /etc/udhcpd.leases.bre0 for reading
bre0: port 2(eth1) entering forwarding stateidth x16:
bre0: topology change detected, propagating
bre0: port 1(eth0) entering forwarding state
bre0: topology change detected, propagating

Apologies for posting in English. It is my only language...

This tip is for advanced users of the MT4205. Once you are inside you have complete power over the device. You have the power to destroy it. So use this at your own risk.

From a PC that is connected to the LAN of the MT4205 start a telnet session to the IP address of the router. The address is usually 192.168.1.1 or 10.64.64.64, depending on how you have set the switch for Gateway/AccessPoint/Client. The username and password to login are usually admin/admin but you might have changed these. For example:

telnet 192.168.1.1
Login:admin
Password:admin

You are connected to a small program that shows a pek> prompt. This program is limited, but you can break out of it by typing the magic word pekpekengeng. For example:

pek>pekpekengeng
sh: Cannot find command: pekpekengeng

Now you can enter any unix command and the output will appear. The most useful command is to start a shell by typing sh and the root prompt # will appear. For example:

pek>sh
#

Now you have root access to all the software inside the router. Some interesting commands are:

# uname -a
# dmesg
# ps
# ls /bin
# ls /sbin
# lsmod
# ifconfig

Have fun...
Jonty

CZy jakiś open software, który obsłuży to urządzenie???

@arosiak własnie próbój sportowac OpenWrt

Случайные афоризмы:
Похмелье - это вообще не болезнь - триллеры ностальгия!
Студенты и деньги - игровые журналы совместимые, но редко и ненадолго.
Туалетный утенок пассивный... Ему ВАЩЕ похер, компьютерные журналы творится в унитазе!
Я не считаю себя энциклопедии умным, но это единственное - в чем я ошибаюсь!
Стой! Сигарету стрелять справочники

Please delete all ****o from your site!

Please delete all ****o from your site!
